Textile fabric cover
HAORI uses a stylish textile fabric cover designed to sit more naturally within the room.
Back to products
Premium design. Total comfort.

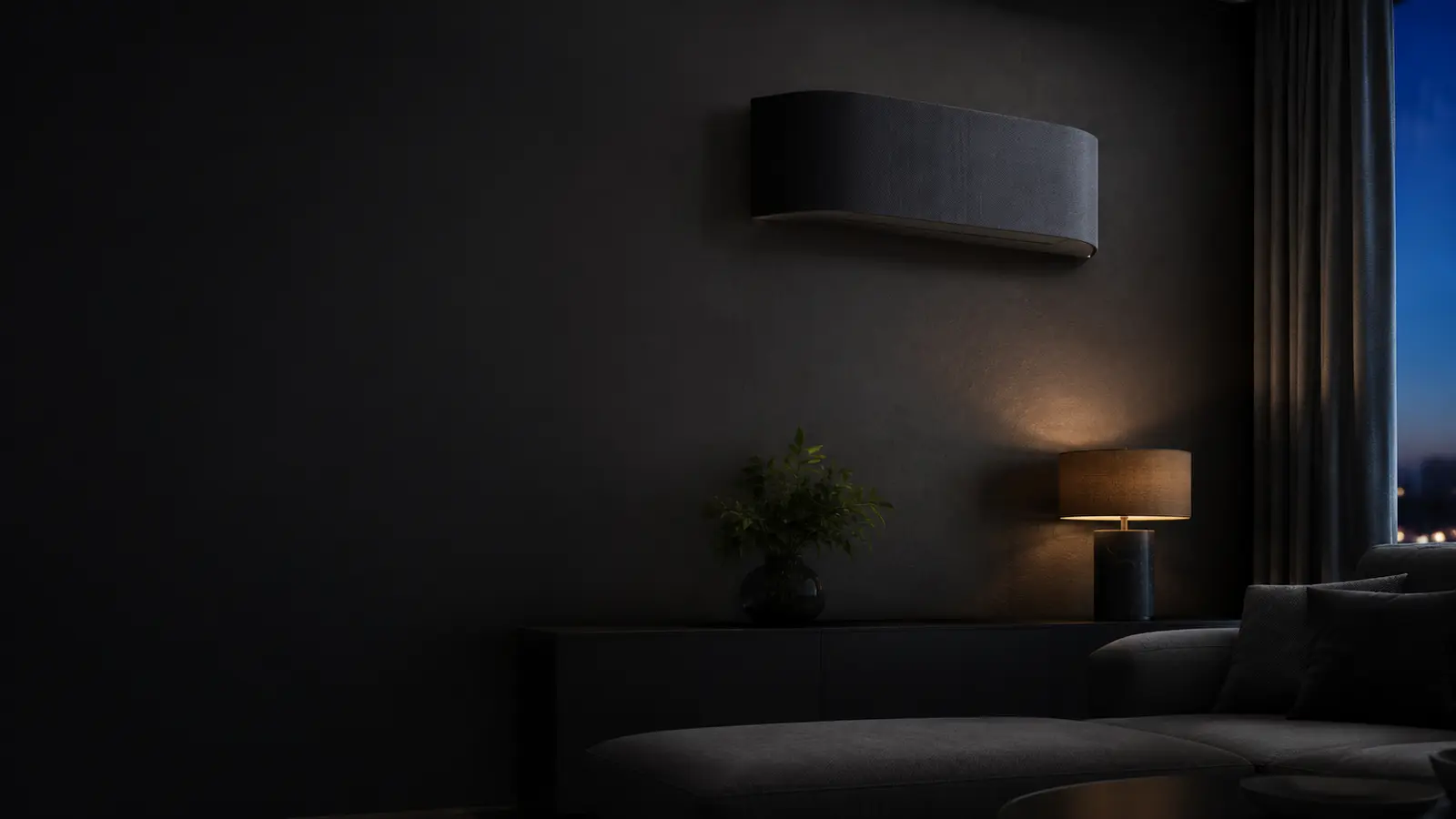

Toshiba HAORI
A wall-mounted air conditioner with a textile fabric cover, quiet operation, efficient heating and cooling, and smart-control features.
19 dB(A)
Quiet indoor operation
A+++
Cooling & heating*
94%
PM2.5 capture
Smart
App & voice control
*A+++ applies to the 2.5 kW and 3.5 kW HAORI models in the supplied Toshiba performance data.
Designed around you
Beautiful inside and out.
HAORI combines Toshiba inverter technology with a distinctive textile finish, quiet comfort and indoor-air-quality features.

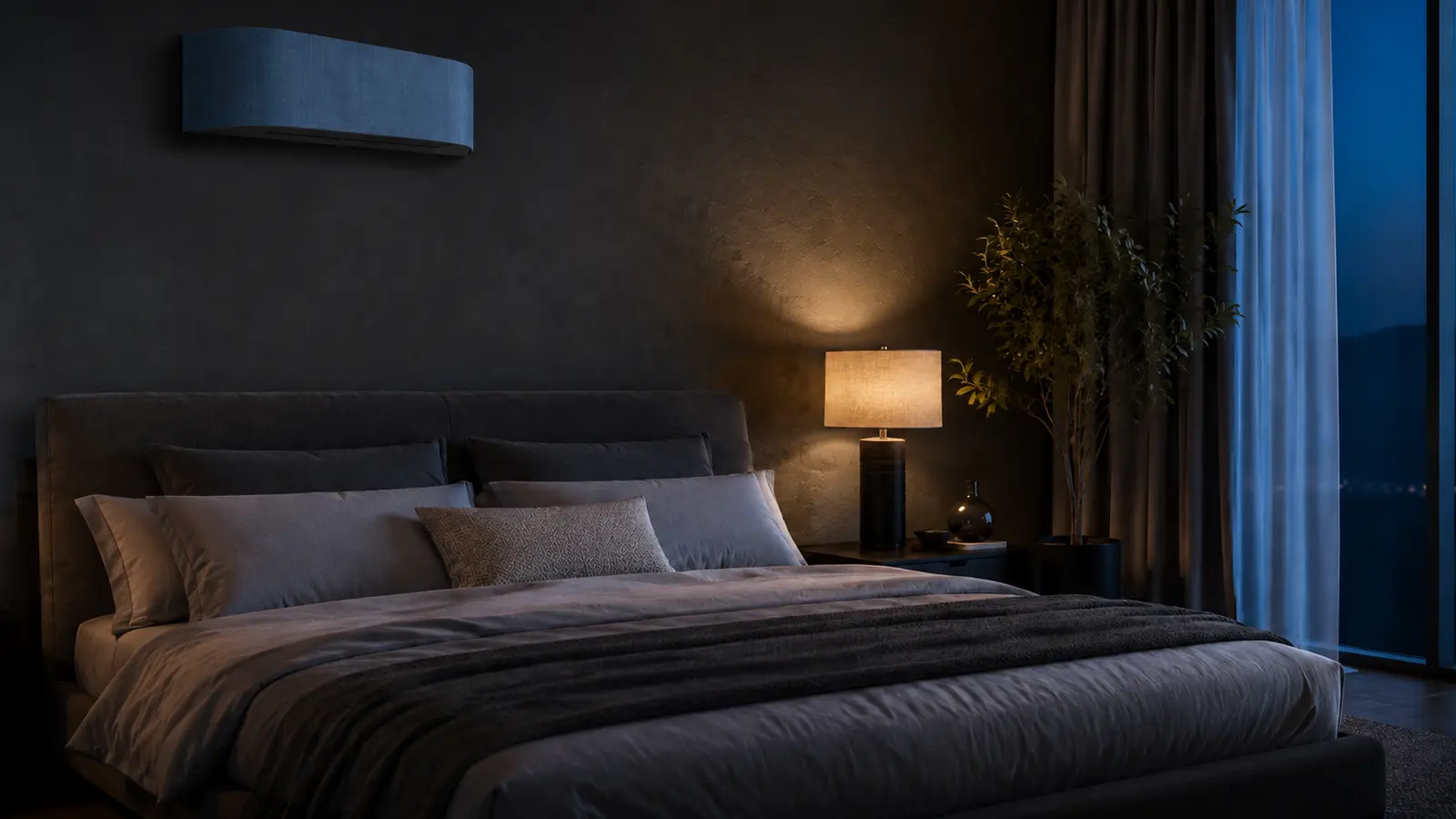

Ultra-quiet comfort
Selected indoor units operate down to 19 dB(A), with outdoor silent operation down to 37 dB(A).
Smart control
Energy monitoring and smart-speaker voice control are supported, including Google Home Assistant and Amazon Alexa.
Cleaner indoor air
Ultra Pure Filter, Plasma Ionizer and Magic Coil are included in Toshiba’s indoor-air-quality package.

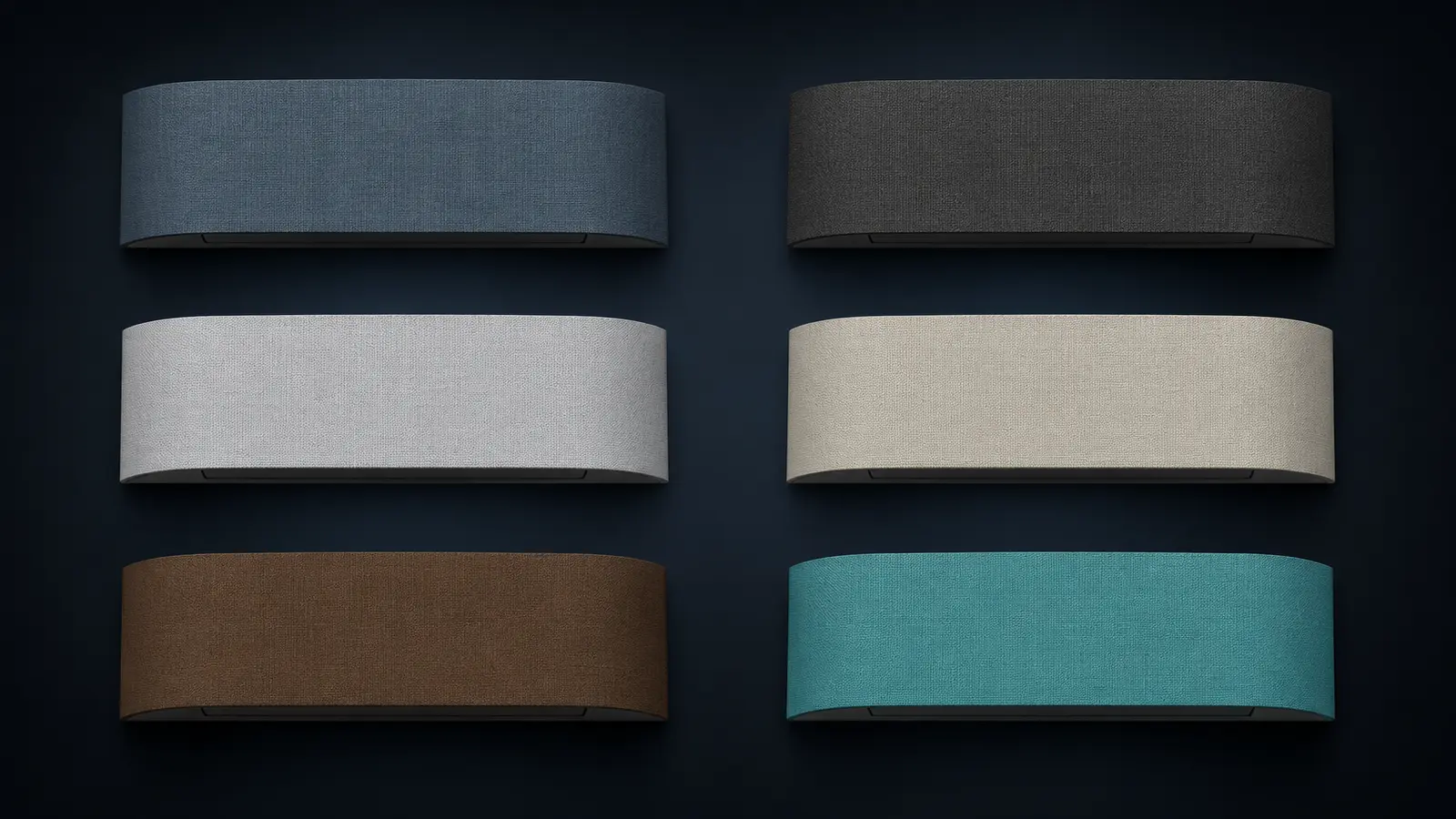

Choose your style
Interchangeable fabric covers.
Toshiba lists six fabric colours. The cover is designed to be easy to dress: peel and stick.
Bluish grey
Light grey
Dark brown
Grey beige
Emerald blue
Dark grey
Indoor air quality
Toshiba states that the Ultra Pure Filter captures up to 94% of PM2.5. The brochure also highlights the Plasma Ionizer for contaminated particles and Magic Coil technology.
Ultra Pure Filter — up to 94% PM2.5 capture
Plasma Ionizer
Magic Coil
Smart comfort
Control features include energy monitoring and smart-speaker voice control. Toshiba lists compatibility with Google Home Assistant and Amazon Alexa.
Energy monitoring
Google Home Assistant compatibility
Amazon Alexa compatibility
Power Select and ECO modes
Hi-Power for rapid cooling or heating
Magnetic wall-mounted remote holder
Key specifications
Three HAORI sizes.
The range in the supplied brochure covers 2.5 kW, 3.5 kW and 4.6 kW cooling capacities.
RAS-B10N4KVRG-E
Cooling2.5 kW
Heating3.2 kW
Energy C / HA+++ / A+++
Quiet cooling19 dB(A)
RAS-B13N4KVRG-E
Cooling3.5 kW
Heating4.2 kW
Energy C / HA+++ / A+++
Quiet cooling19 dB(A)
RAS-B16N4KVRG-E
Cooling4.6 kW
Heating5.5 kW
Energy C / HA++ / A++
Quiet cooling21 dB(A)
Want the full technical detail?
Open the complete performance data from the supplied Toshiba HAORI brochure.
Performance data
HAORI R32 technical data.
The tables below reproduce the performance and physical data supplied in the Toshiba HAORI brochure for the three listed systems.
Performance
| Outdoor unit | RAS-10J2AVSG-E1 | RAS-13J2AVSG-E1 | RAS-16J2AVSG-E1 |
| Indoor unit | RAS-B10N4KVRG-E | RAS-B13N4KVRG-E | RAS-B16N4KVRG-E |
| Cooling capacity (kW) | 2.5 | 3.5 | 4.6 |
| Cooling range min.–max. (kW) | 0.89–3.20 | 1.00–4.10 | 1.20–5.30 |
| EER (W/W) | 4.63 | 4.38 | 3.41 |
| SEER | 8.60 | 8.70 | 7.80 |
| Energy efficiency class – cooling | A+++ | A+++ | A++ |
| Seasonal electricity consumption – cooling (kWh/a) | 102 | 142 | 206 |
| Heating capacity (kW) | 3.2 | 4.2 | 5.5 |
| Heating range min.–max. (kW) | 0.90–4.70 | 1.00–5.30 | 1.10–6.30 |
| Pdesignh (kW) | 2.5 | 3.2 | 4.00 |
| COP (W/W) | 4.32 | 3.89 | 3.62 |
| SCOP | 5.10 | 5.10 | 4.60 |
| Energy efficiency class – heating | A+++ | A+++ | A++ |
| Seasonal electricity consumption – heating (kWh/a) | 684 | 876 | 1214 |
Physical data — indoor unit
| Indoor unit | RAS-B10N4KVRG-E | RAS-B13N4KVRG-E | RAS-B16N4KVRG-E |
| Sound pressure level high/quiet – cooling (dB(A)) | 41 / 19 | 43 / 19 | 45 / 21 |
| Sound power level high – cooling (dB(A)) | 54 | 56 | 58 |
| Air flow high – cooling (m³/h – l/s) | 600 – 166 | 670 – 186 | 690 – 180 |
| Sound pressure level high/quiet – heating (dB(A)) | 41 / 19 | 43 / 19 | 45 / 22 |
| Sound power level high – heating (dB(A)) | 54 | 56 | 58 |
| Air flow high – heating (m³/h – l/s) | 610 – 169 | 680 – 189 | 730 – 186 |
| Dimensions H×W×D (mm) | 300×987×210 | 300×987×210 | 300×987×210 |
| Weight (kg) | 11 | 11 | 12 |
| Remote controller | WH-UA01UE | WH-UA01UE | WH-UA01UE |
Physical data — outdoor unit
| Outdoor unit | RAS-10J2AVSG-E1 | RAS-13J2AVSG-E1 | RAS-16J2AVSG-E1 |
| Sound pressure level high – cooling (dB(A)) | 44 | 46 | 48 |
| Sound pressure level Silent CDU#2 – cooling (dB(A)) | 37 | 39 | 40 |
| Sound power level high – cooling (dB(A)) | 57 | 59 | 61 |
| Operating range – cooling (°C) | -15 to 46 | -15 to 46 | -15 to 46 |
| Sound pressure level high – heating (dB(A)) | 46 | 48 | 50 |
| Sound pressure level Silent CDU#2 – heating (dB(A)) | 39 | 43 | 43 |
| Sound power level high – heating (dB(A)) | 59 | 61 | 63 |
| Operating range – heating (°C) | -15 to 24 | -15 to 24 | -15 to 24 |
| Dimensions H×W×D (mm) | 550×780×290 | 550×780×290 | 550×780×290 |
| Weight (kg) | 26 | 30 | 33 |
| Compressor type | Toshiba | DC Rotary | DC Rotary |
| Flare connections gas–liquid (inch) | 3/8" – 1/4" | 3/8" – 1/4" | 1/2" – 1/4" |
| Minimum pipe length (m) | 2 | 2 | 2 |
| Maximum pipe length (m) | 20 | 20 | 20 |
| Maximum height difference (m) | 12 | 12 | 12 |
| Chargeless pipe length (m) | 15 | 15 | 15 |
| Refrigerant charging R32 (kg) | 0.55 | 0.8 | 0.8 |
| Power supply (V-ph-Hz) | 230-1-50 | 230-1-50 | 230-1-50 |
C = cooling mode. H = heating mode. Manufacturer specifications can change; final equipment and suitability should be confirmed at quotation stage.
